dual mag

Magnetite isn’t just a domestic issue. In fact, the bigger
the system, the bigger the problem. Our commercial
filters are designed to protect heating/cooling systems.
dual mag, central heating and cooling magnetic filter,
protecting heating/cooling components from the
damaging effects of sludge and debris. The dual design
provides an opportunity to capture all impurities in two
times of contact with the same magnet.
Thanks to it’s design, it can be installed even vertical or
horizontal.
dual mag is one of most powerful magnetic filters in the
world, suitable for both cooling and heating in hydronic
systems.
Dual Mag, represents the best solution for boiler rooms,
to solve plant problems due to particle pollution,
especially sand, magnetite and rust that are formed due
to corrosion and scale during the normal operation of a
system.

دسته محافظت در آشام

«protection»

This product belongs to the protection category in the TCTP group (testing, cleaning, revitalization, and protection).

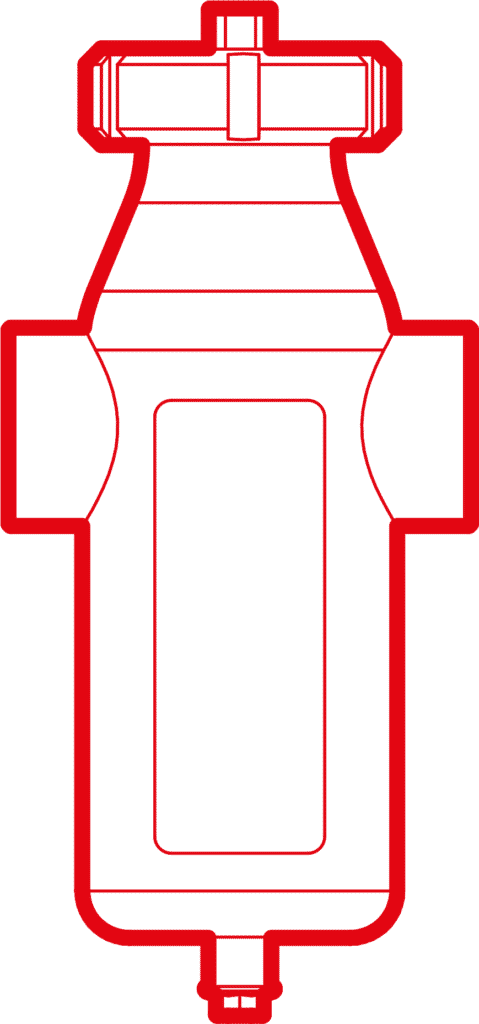

تصویر سه بعدی فیلتر مغناطیسی مدار گرمایش/سرمایش سایز صنعتی موتعورخانه دوال مگ

Owner Benefits:

  • Minimum 12% annual saving on cooling/heating bills
  • wide range of sizes
  • Vertical or Horizontal installation possibility
  • Increases system lifespan
  • Retains sludge, rust and magnetite
  • Collects all impurities
  • Fight corrosion and stop further corrosion in the system
  • 5 Years Warranty

Installer Benefits:

  • Available in 1″, 1,1/4″, 1, 1/2″, 2″ and DN40, DN50
  • Supplied with open/close wrench for magnetic cap and drain plug.
  • Simple installation and servicing
  • Equipped with air vent with the security spring system.
  • vertical and horizontal installation.
  • Construction conforms to Pressure Equipment Directive 97/23/EC
درب دوال مگ
بدنه دوال مگ

Dual Mag is highly recommended:

  • Prevents breakdowns due to residues and debris inside the system
  • Prevents boiler breakdown and its components
  • Prevents pump breakdown for at least 15 years
  • Maintain radiators heat emission
  • Avoid temperature fluctuation in Sanitary how water
  • Circulator pump noise reductiona
نمایی از جدا کننده مغناطیسی دوال مگ

Technical Information

Connecton size(Weight(kg
"G12.650
"G1,1/22.920
"G1,1/42.950
"G23.185
DN406.150
DN504.765
Additional information
Consumable: Boiler Room
Install locationIn flow or return of cooling/heating circuit
ColorDark Blue
Magnetic field strength11000 GAus
Warrenty5 Years
ManufacturerPYACO
Manufacturing CountryIran
تصویر جدول افت فشار جدا کننده مغناطیسی دوال مگ

More Pictures:

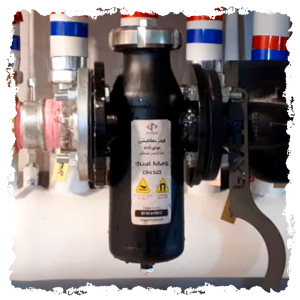

Dual Mag Installation and performance pictures:
