Magy II

Magy II, Central heating magnetic filter, protecting the combi boilers from the damaging effects of sludge. The super compact design provides an opportunity to fit in all small areas.

Simply, by installing Magnetic filter in the return pipe of CH circuit of a combi-boiler, it prevents any boiler and its components break down.

Installing this filter, guarantees no boiler breakdown, because it will collect all magnetic and non-magnetic particles inside the system. Magnetic particles such as sludge and magnetite are results for corrosion in the system.

The best performance will be achieved by injecting G1 inside the heating system


دسته محافظت در آشام


This product belongs to the protection category in the TCTP group (testing, cleaning, revitalization, and protection).

MagyII home owner benefits:

  • Prevention of boiler break down during the normal operation of the boiler.
  • Increase combi-boiler lifespan.
  • Decreasing maintenance cost up to 80%.
  • Decreasing technician time in customer house for service.
  • Decreasing energy cost up to 18%.
  • Prevents temperature fluctuation in domestic hot water.
  • Reducing CO2 emission up to 6%.
  • 5 Years warranty

Magy II installer benefits:

  • fast and easy installation
  • Fits horizontal and vertical pipework
  • Easy to service
  • Supplied fully assembled and ready for installation

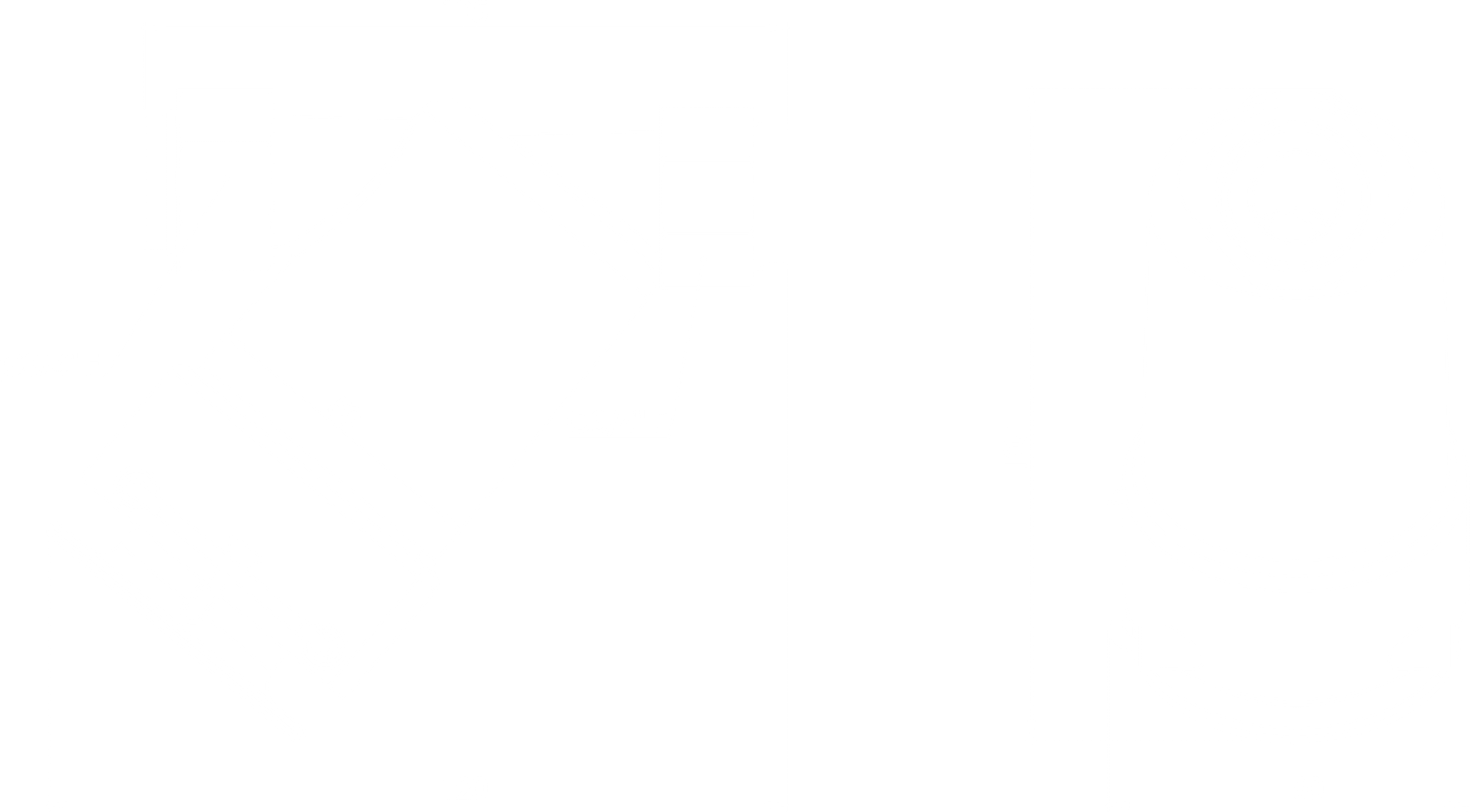

Technical data:

جدول ابعاد فیلتر مغناطیسی مدار گرمایش مگی2
Technical Information
Consumable for:Combi Boiler
Connection size:G3/4
Stainless steel strainer’s mesh size: 800 Micrometre
Color:Dark Blue
Manufacturing Country:IRAN
Magnetic field strength:12000 Gauss

Magy II installation guide:

Magy II fits on the return pipe of combi-boilers to prevent boiler break downs. and will capture magnetic and non-magnetic particles during the normal operation of the system.

تصویر نحوه نصب فیلتر مغناطیسی مدار گرمایش پکیج مگی2

more pictures:

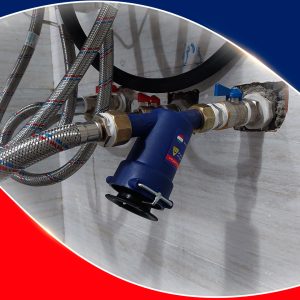

installation and performance pictures:
